Welding Dzus tabs often looks straightforward at first. You tack the tab in place, step back, and everything appears square and ready to go. But once the weld is finished and you move on to the next tab, alignment issues start to show up.
Tabs aren’t sitting square. Fasteners don’t line up clean. Panels that should drop into place suddenly need extra force, or rework, to fit. What started as a clean setup turns into grinding and adjustments that weren’t part of the plan.
In most cases, crooked Dzus tabs happen because of what’s happening before the weld, such as how the tab is held, aligned, and controlled during setup. Today, we’ll break down why Dzus tabs end up crooked, where common holding methods fall short, and how fabricators use better tools and setups to keep tabs straight and repeatable.
What “Crooked” Actually Means on a Chassis
When fabricators talk about crooked Dzus tabs, they’re usually not talking about something obviously wrong at first glance.
Most of the time, it shows up as small inconsistencies:
- Tabs sitting just slightly off square
- Spacing that looks fine individually but drifts over distance
- Fasteners pulling panels instead of seating clean
One tab being off rarely causes panic. The problem is what happens when you repeat that mistake across a chassis.
Those small errors stack:
- Panels don’t sit flat
- Dzus fasteners bind or feel forced
- Fitment turns into trial‑and‑error instead of drop‑on
That’s why Dzus tab alignment isn’t just about appearance. It directly affects how the car goes together, and how much time you spend fixing things that should’ve worked the first time.
Why Dzus Tabs Actually End Up Crooked
Most crooked tabs come down to a handful of setup issues that repeat themselves build after build.
1. The Tab Moves During the First Tack
This is the most common culprit.
If the tab isn’t fully stable, heat from the first tack will pull it slightly. That movement might be subtle, but once it’s tacked, that position is locked in.
From there, every weld just reinforces the mistake. The problem isn’t the weld, but that the tab wasn’t controlled when it mattered most.
2. Flat Tabs Don’t Naturally Sit Square on Tubing
Dzus tabs are flat. Tubing isn’t.
That mismatch creates:
- Limited contact between the tab and the tube
- A tendency for the tab to rock or tilt
- No natural reference telling you when it’s actually square
Even when it looks right, it may not be fully supported. That’s where alignment starts drifting without you noticing.
3. Setup Changes from Tab to Tab
This one sneaks up on a lot of shops.
One tab gets held by hand.
The next uses a magnet.
Another gets clamped differently.
Each method positions the tab just a little differently. Over multiple tabs, that inconsistency becomes visible in panel fitment and fastener alignment.
If the setup changes every time, the results will too.
4. Treating the First Tack Like It’s Temporary
It’s easy to think, “I’ll fix it later.”
But the first tack isn’t temporary — it’s directional.
Once that tack goes down:
- Heat pulls the tab
- The weld follows the tack
- Any misalignment gets harder to correct
At that point, you’re not fixing it. You’re working around it.
5. No Clear Reference for Spacing and Orientation
Without layout marks or consistent reference points, tabs slowly drift:
- Slightly forward
- Slightly angled
- Slightly uneven
One or two won’t jump out. A full chassis will.
Why These Problems Get Worse as the Build Goes On
Crooked tabs scale poorly.
- One misaligned tab → manageable
- Five → noticeable
- Twenty → frustrating
Now you’re dealing with:
- Panels that don’t want to sit flat
- Fasteners that need persuasion
- Time lost adjusting instead of assembling
This is where alignment issues stop being cosmetic and start affecting workflow.
How Fabricators Keep Dzus Tabs Straight
Keeping tabs straight isn’t complicated, but it does require intention.
1. Lock the Tab in Before You Tack
If the tab can move, it will. Make sure it’s:
- Fully supported
- Unable to rock
- Stable when heat hits it
If it’s not solid, don’t weld it yet.
2. Treat the First Tack Like the Final Position
Because it is.
- Check alignment
- Apply heat carefully
- Confirm nothing shifted
That first tack sets the tone for everything that follows.
3. Use the Same Method Every Time
Consistency is what makes clean builds.
- Same positioning method
- Same holding approach
- Same reference points
Repeatable process = repeatable results.
4. Build a Layout You Can Follow
Even something simple helps:
- Marked spacing
- Visual references
- Consistent orientation
It removes guesswork and prevents drift.
5. Use Tools That Match the Job
Round tubing and flat tabs don’t work well with generic holding methods.
- Hand‑holding allows movement
- Magnets lack consistent contact
- Clamps can twist or block access
Tools that match the shape of the tubing give you control instead of correction.
Related Read: Hands-Free Welding Solutions: Clamps, Magnets, Jigs (Which to Use and When)
Where Chassis Speed Jigs Make the Difference

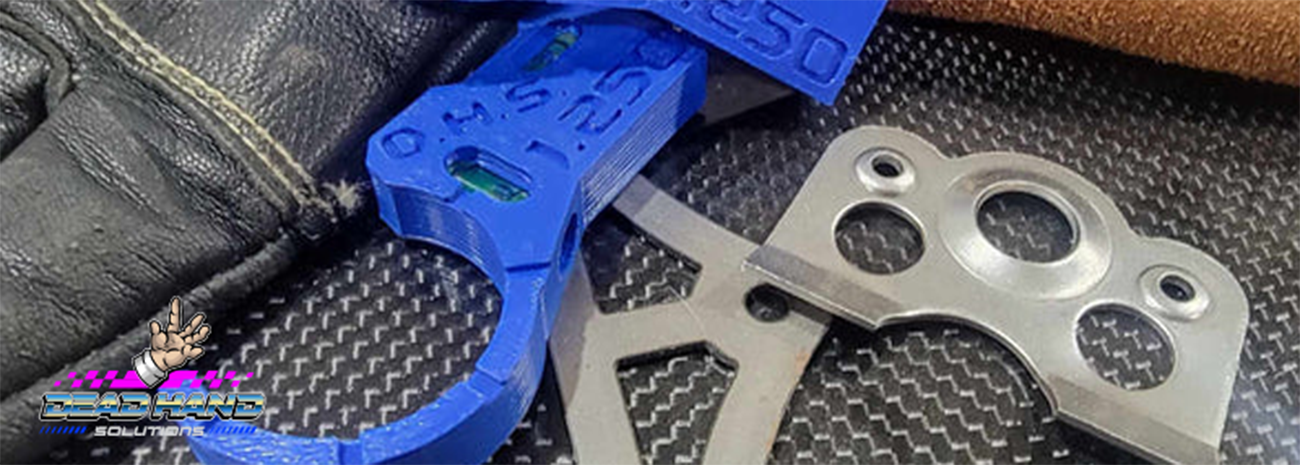

Chassis Speed Jigs are built specifically for situations where alignment matters across multiple tabs, not just one.
They’re designed for:
- Dzus tabs
- Scallop strips
- Chassis work on round tubing
What they change:
- Tabs stay square during tacking
- Placement stays consistent from tab to tab
- Setup time drops
- Rework disappears
The goal isn’t to get one tab right. It’s to get every tab right without thinking about it.
Shop Jig Bundles for Multi-Tab Builds
Read More: Why Round Tubing Makes Tab Alignment a Pain & the Tools Fabricators Use to Fix It
The Bottom Line on Dzus Tabs
Crooked Dzus tabs come from movement during tacking, poor fit-up, and inconsistent setup. Fix those, and everything downstream gets easier! Get control before you weld with the right tools, and the rest falls into place.
If you want your tabs to land where you put them the first time:
Shop Jig Bundles for Multi-Tab Builds
Tab Alignment on Dzus Tabs: Real Questions Fabricators Ask
Why do Dzus tabs end up crooked when welding?
Tabs usually end up crooked due to movement during tack welding, poor fit-up on round tubing, or inconsistent holding methods.
How do you keep tabs straight when welding to tubing?
Use stable, repeatable holding methods, confirm alignment before the first tack, and keep your setup consistent across all tabs.
Does tack welding affect alignment?
Yes. The first tack weld sets the tab’s position. If the tab shifts during that step, the final weld will follow that misalignment.
What’s the best way to align multiple tabs on a chassis?
Use consistent reference points and repeatable holding tools so every tab is placed the same way across the build.
