Welding tabs to flat plate is easy. You set it down, square it up, tack it, and move on. Round tubing doesn’t play by those rules.
The moment you try to mount a flat tab to a curved tube, everything starts fighting you. Tabs rock. Magnets slip. Clamps sit crooked. And if you don’t have the right tool holding things in place, even a perfect tack can lock in a bad alignment.
This isn’t a welding skill problem, but a holding and setup problem. It’s why most fabricators eventually stop relying on magnets and clamps alone and start using tools designed specifically for round tubing.
Today, we’re breaking down why tab alignment on round tubing is so difficult, what common tools get wrong, and which tools actually make the job faster, cleaner, and repeatable.
The Real Problem Is That Flat Tabs Don’t Want to Sit on Round Tubing
At its core, the issue is simple:
You’re trying to hold a flat part against a curved surface, with no natural reference point.
That creates a few problems immediately:
- The tab only touches the tube at one small point
- There’s nothing stopping it from rocking or rotating
- You can’t tell if it’s truly square until it’s already tacked
On a single tab, you might get lucky. On a full chassis? Those tiny inconsistencies stack up fast.
That’s how you end up with:
- Panels that fight you during install
- Dzus fasteners that don’t line up clean
- Tabs that technically work, but look off once everything’s assembled
Once a bad tack goes down, the mistake is locked in. From there, you’re either grinding, re‑cutting, or learning to live with it.
Why Common Holding Methods Struggle on Round Tubing
Most shops don’t start with jigs. They start with what’s already on the bench. Here’s where those methods fall short.
1. Holding Tabs by Hand
Everyone’s done it.
Why it happens:
- It’s quick
- “It’s just one tab”
- You think you can hold it steady long enough to tack
Where it breaks down:
- Even slight movement throws alignment off
- Heat pulls the tab the moment you tack
- Zero repeatability from tab to tab
Fine for mock‑ups. Not fine for precision.
2. Welding Magnets
Magnets are a go‑to for a reason, just not for this job.
Where they help:
- Flat surfaces
- Light positioning
- Temporary layout work
Where they struggle on round tubing:
- Minimal contact on curved surfaces
- Easy to bump out of position
- Not reliable for consistent angles
If you want to dig deeper into this, we’ve covered it here:
Magnets and TIG Welding — Do They Really Mess with the Arc?
3. Clamps (Vice Grips, C-Clamps, etc.)
Clamps give you force, but not always control.
The issue:
- Awkward positioning on round tube
- Can twist the tab as you tighten
- Often block access to the weld
They hold things tight, not necessarily right.
4. Improvised Shop Solutions
Zip ties. Tape. Scrap blocks. Whatever’s close. It works… until you need to do it again.
The moment you’re installing:
- Multiple tabs
- Dzus mounts
- Long runs of scallop strips
Inconsistency becomes the enemy.
What Changes When You Use a Jig Designed for Round Tubing
This is where purpose‑built tools earn their keep.
Jigs designed specifically for round tubing do three critical things:
- Match the curvature of the tube
- Hold the tab square automatically
- Prevent movement during tacking
Instead of fighting geometry, you’re using it.
That means:
- Stable contact points
- Hands‑free positioning
- Identical alignment from tab to tab
- Faster setup with fewer do‑overs
This matters most on:
- Dzus tabs
- Scallop strips
- Panel mounts that need to line up clean across a chassis
Why Repeatability Matters More Than “Getting One Tab Right”
Anyone can make one tab look good. The real test is whether the next ten match it, the panels drop on without forcing, and the fasteners seat clean without slotting holes. Repeatability is what separates a clean chassis from one that constantly needs “a little adjustment.”
If you want more context on why setup consistency saves time, this post breaks it down:
5 Ways to Speed Up Fabrication in the Shop Without Sacrificing Quality
Fast shops aren’t rushing — they’re just not fixing the same problem twice.
Where Chassis Speed Jigs Actually Earn Their Spot on the Bench
Most fabricators don’t start a build thinking, “I need a jig for this.” They get there after fighting the same issue a few too many times.

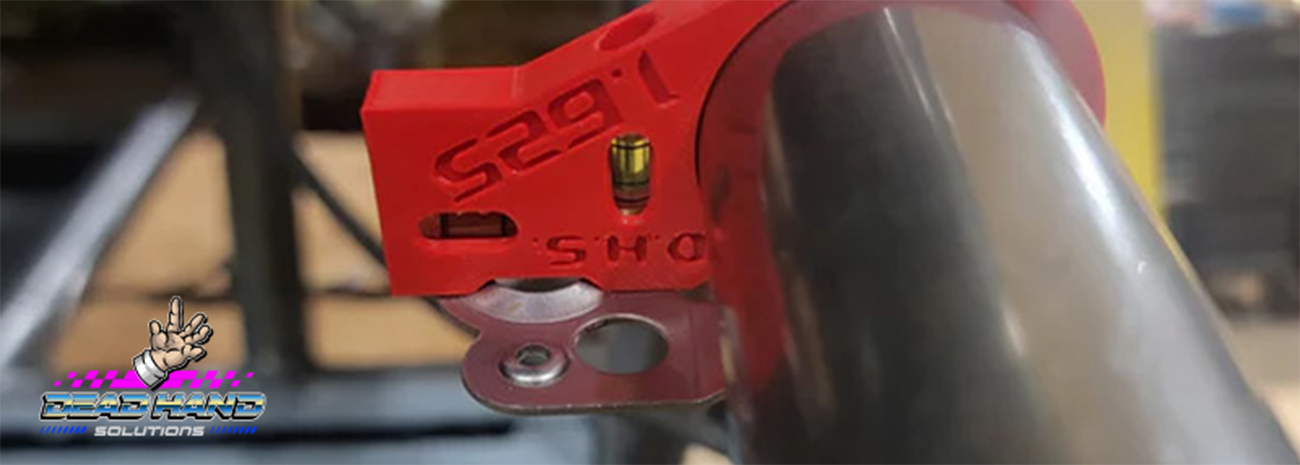

Chassis Speed Jigs are built specifically for this exact problem: holding flat tabs square and stable on round tubing, without babysitting the setup.
Instead of trying to force magnets or clamps to work on a curved surface, these jigs match the shape of the tube and give the tab a real reference point. Once it’s in place, it stays there.
What that changes in the shop:
- Tabs don’t rock or twist while you’re tacking
- Alignment stays consistent from the first tab to the last
- You’re not guessing if things are square — they just are
- Setup takes seconds instead of constant adjustment
This matters most when you’re installing:
- Dzus tabs
- Scallop strips
- Multiple panel mounts across a chassis
On those jobs, “close enough” turns into panel fit issues fast. Chassis Speed Jigs take that variable out of the equation, so you’re not fixing alignment problems later with a grinder.
They’re not about welding better. They’re about setting yourself up so the weld doesn’t have to save bad positioning.
Shop Jig Bundles for Chassis Builds
The Bottom Line
Round tubing isn’t the problem. Uncontrolled setup is.
When tabs shift before the weld ever starts, the final result is already compromised. Better holding leads to better alignment, cleaner installs, and fewer headaches when everything comes together.
Control the setup and the welding gets a whole lot easier.
Common Tab Alignment Questions (Answered from the Shop Floor)
Why is tab alignment harder on round tubing?
Because flat tabs have limited contact with curved surfaces, making them unstable without proper support.
Do magnets work for holding tabs on round tube?
They can help with rough positioning, but they lack the stability and repeatability needed for precise alignment.
What’s the best way to align multiple tabs on a chassis?
Using tools that provide consistent reference points and hold tabs square across every placement.
Are jigs worth it for small shops?
If you’re doing repeated tab work or chassis builds, jigs save time, reduce rework, and improve consistency.
