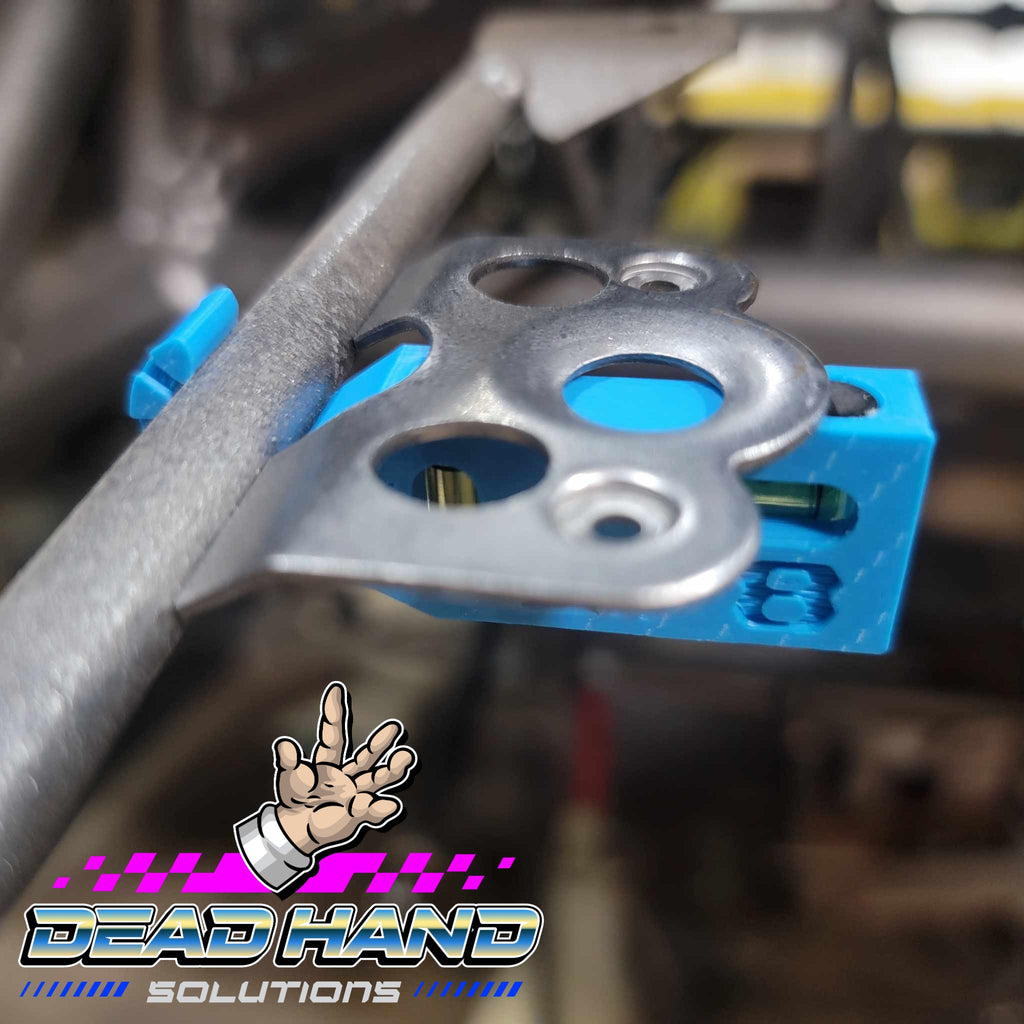

  • 0.375 inch Chassis Speed Jig for positioning Dzus tabs on small tube fabrication projects
Small Tube Pro Kit

Small Tube Pro Kit

$143.99
$143.99 $179.55

9-Piece Chassis Speed Jig Kit for Small Diameter Dzus Tab Placement

Maximum Control for Small Tube Fabrication

When your work demands precision on small tubing, having the right sizes—and the right duplicates—makes all the difference.

The Small Tube Pro Kit includes everything from the Builder Kit, plus additional sizes and duplicates to give you greater coverage, improved workflow, and less tool swapping during detailed fabrication.

Built for .085" Dzus tab placement, these jigs help you position tabs flush to smaller diameter tubing quickly, accurately, and consistently—no matter how tight the space.

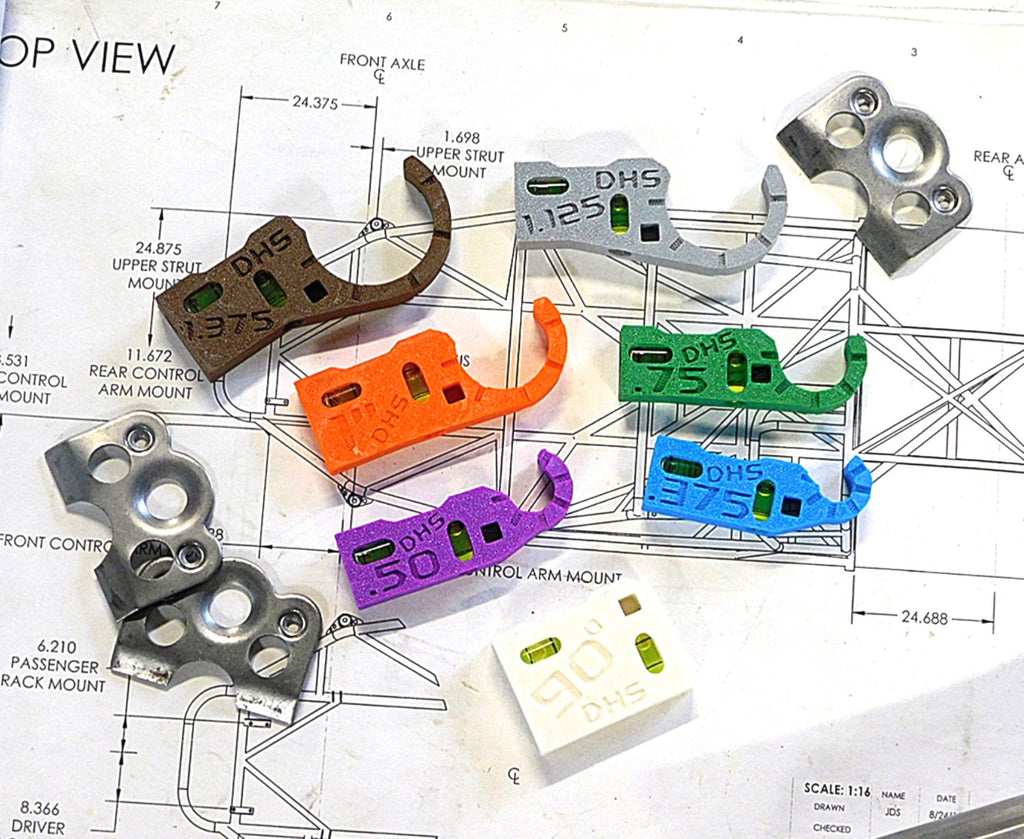

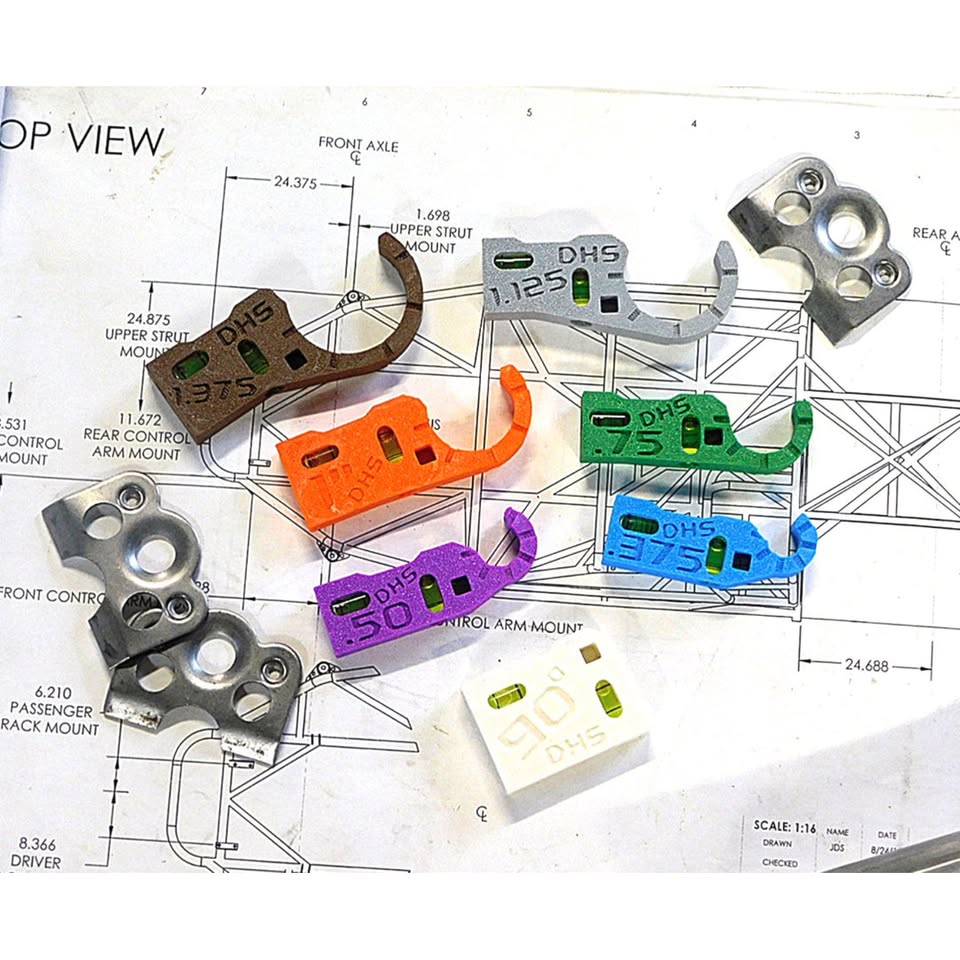

What’s Included (9 Jigs Total)

This kit includes all Builder Kit sizes plus expanded coverage and duplicates:

Core Sizes:
• 1.00" Dzus Tab Jig
• 0.75" Dzus Tab Jig
• 0.50" Dzus Tab Jig
• 5/8" Dzus Tab Jig
• 90° Flat Jig

Added for Pro-Level Workflow:
• Additional 1.00" Dzus Tab Jig
• Additional 0.75" Dzus Tab Jig
• 1.125" Dzus Tab Jig
• 1.375" Dzus Tab Jig

Designed to handle more complex builds, tighter tolerances, and higher workflow demands.

Why Fabricators Upgrade to the Pro Kit

Expanded Size Coverage
More flexibility for uncommon or in-between tube sizes.

Less Tool Swapping
Duplicate sizes keep your workflow moving without interruption.

Better for Complex Builds
Ideal for projects with varied tubing and tighter constraints.

More Efficiency in the Shop
Work faster when you don’t have to constantly reset or reposition.

Made with High Heat ASA

Built for real shop conditions

Strong Magentic Hold

Locks tabs in place

Precise Alignment

Bubble levels and degree markings for perfect alignment

How It Works

  1. Snap the jig onto your tubing

  2. Position your .085" Dzus tab

  3. Use the magnet and guides to align

  4. Tack weld with confidence

  5. Remove jig before final welding
