5-Piece Chassis Speed Jig Kit for Small Diameter Dzus Tab Placement

Built for Precision on Small Tubing

When you’re working with smaller tubing, accuracy matters even more.

The Small Tube Builder Kit is designed specifically for small-diameter tube fabrication, giving you the ability to position .085" Dzus tabs quickly and accurately on tighter, more detailed builds.

Whether you're working on interior structures, lightweight chassis components, brackets, or tight-fit applications, these jigs help you eliminate guesswork and maintain clean, consistent tab placement.

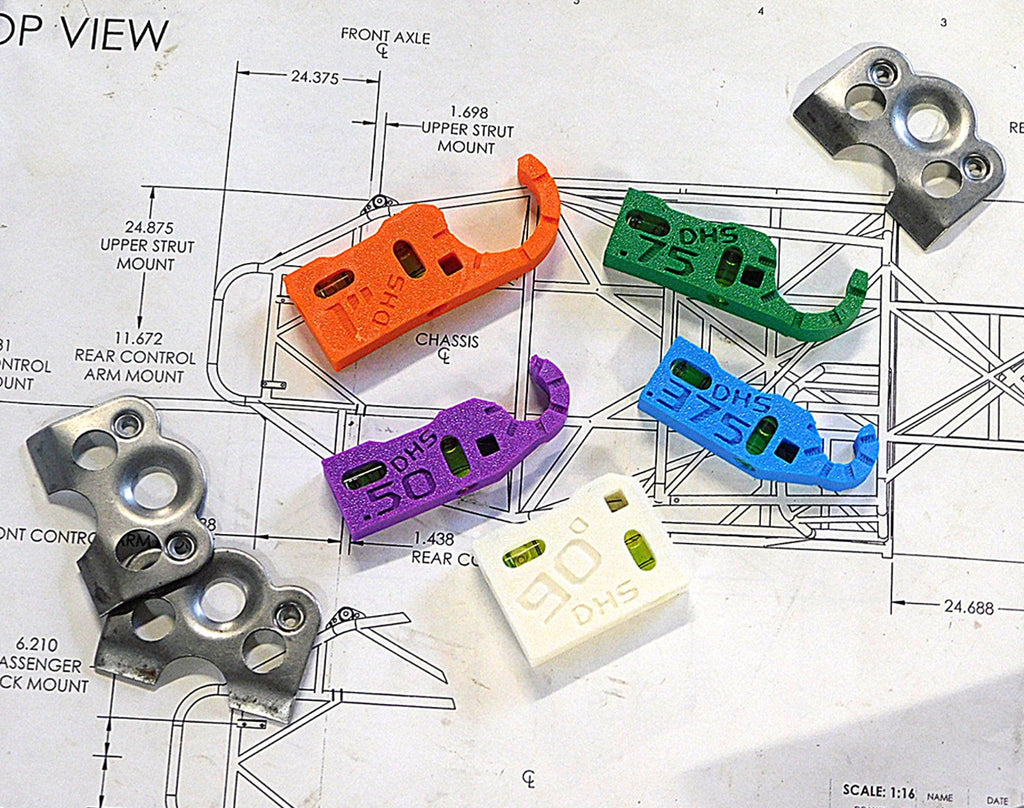

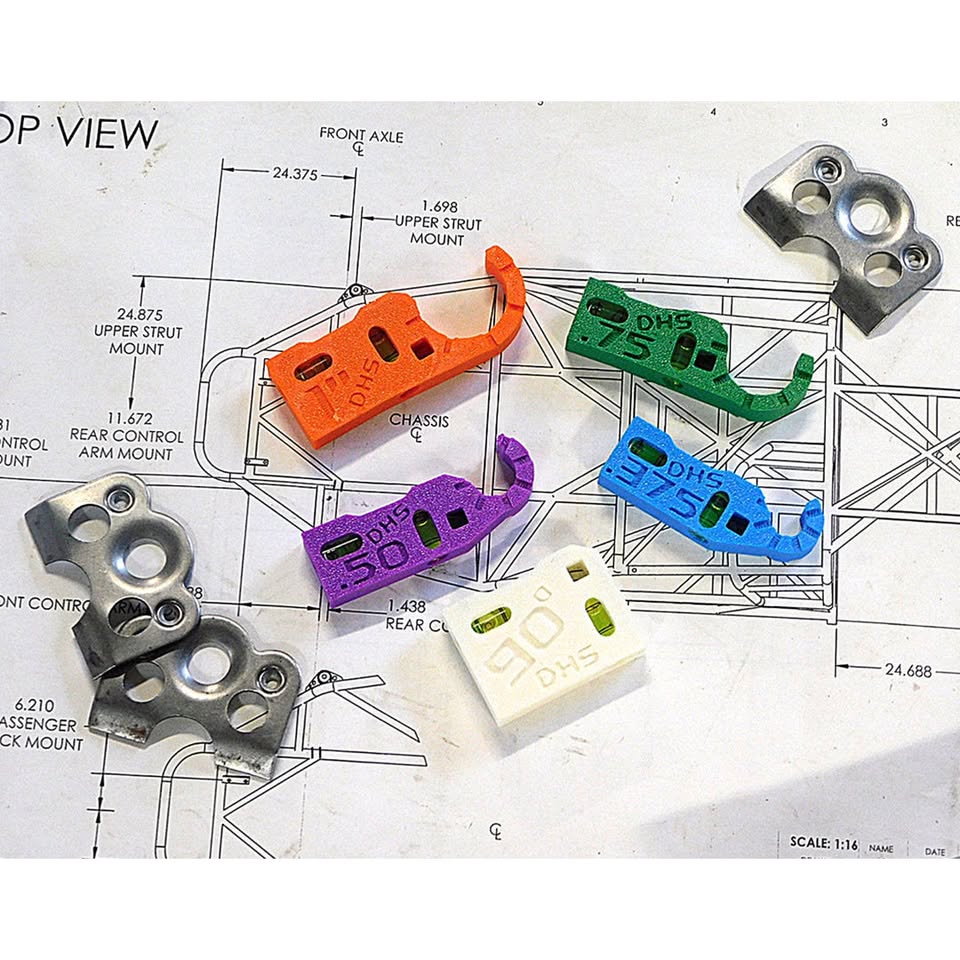

What’s Included (5 Jigs Total)

This kit includes the most commonly used sizes for small tube fabrication:

• 1.00" Dzus Tab Jig

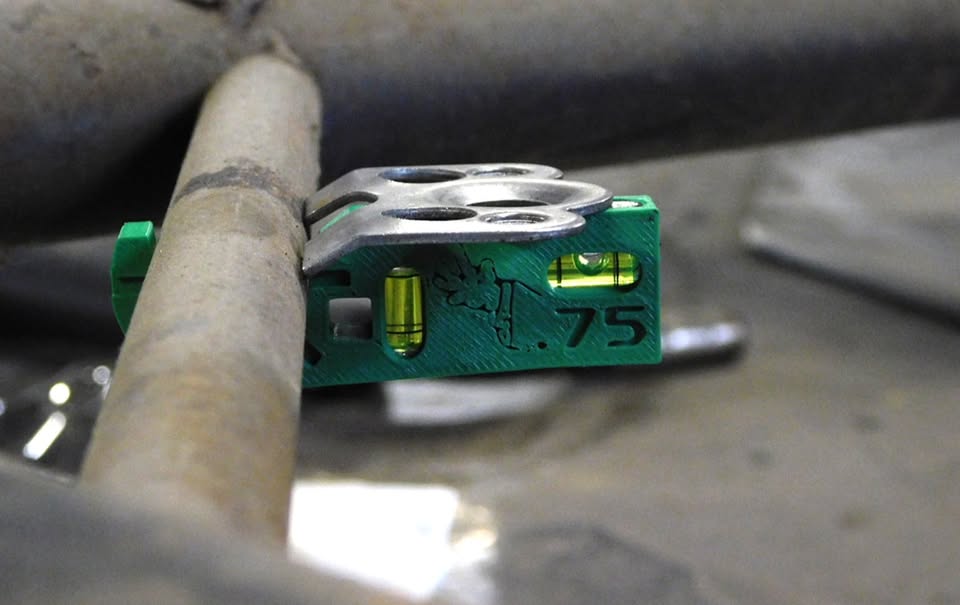

• 0.75" Dzus Tab Jig
• 0.50" Dzus Tab Jig
• 5/8" Dzus Tab Jig

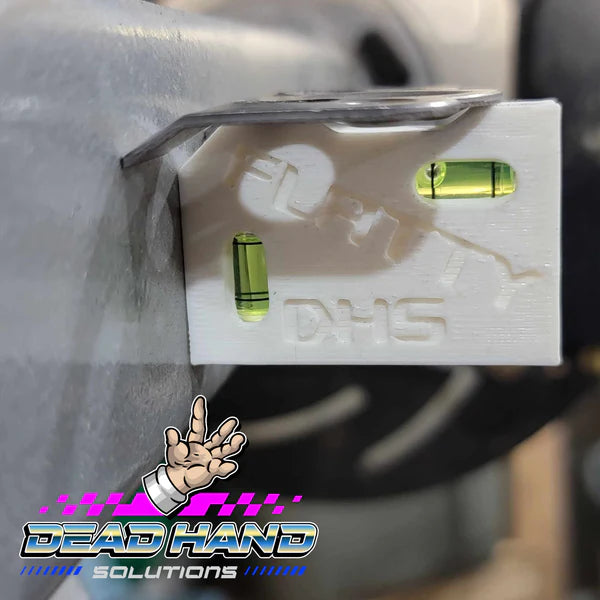

• 90° Flat Jig

Perfect for projects where standard roll cage sizes are too large and precision work is critical.

Why Fabricators Choose This Kit

Built for Small Tube Work
Designed specifically for tighter diameters and detailed fabrication.

Improved Accuracy
Get precise, flush tab placement even in hard-to-reach areas.

Cleaner Results
Reduce misalignment and rework on smaller components.

Essential Coverage
Covers the most common small tube sizes in one compact kit.

Made with High Heat ASA

Built for real shop conditions

Strong Magentic Hold

Locks tabs in place

Precise Alignment

Bubble levels and degree markings for perfect alignment

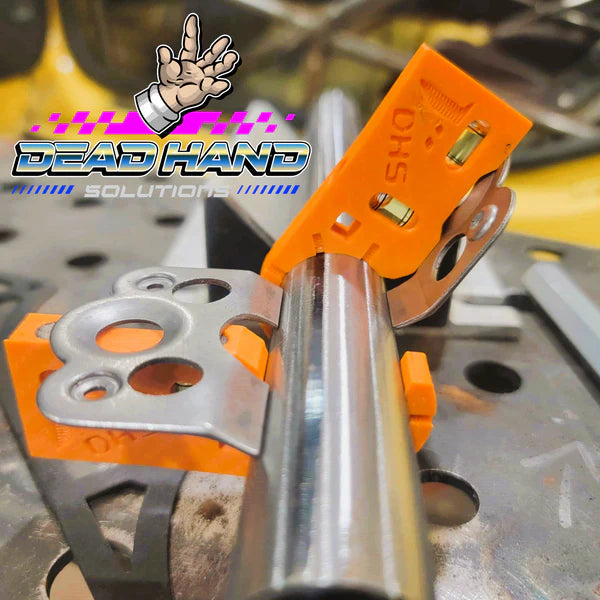

How It Works

  1. Snap the jig onto your tubing

  2. Position your .085" Dzus tab

  3. Use the magnet and guides to align

  4. Tack weld with confidence

  5. Remove jig before final welding
