Dzus tabs are one of those things that look simple… right up until your panel doesn’t sit flush, the fastener binds, or you realize one tab is just a little off compared to the rest.
Most of the time, the problem isn’t the fastener.
It’s the prep, alignment, and tacking.
Welding Dzus tabs on round tubing takes more intention than people expect. Get it right, and everything fits clean and serviceable. Rush it, and you’re grinding, redoing, and questioning your life choices.
This guide walks through how to weld Dzus tabs on a tube chassis the right way, with practical tips that actually hold up in a real shop.
Why Dzus Tabs Deserve More Attention Than They Get
Dzus tabs play a bigger role than most people give them credit for.
Poorly installed tabs lead to:
- Panels that don’t sit flat
- Fasteners that bind or wear prematurely
- Inconsistent spacing that looks sloppy
- Extra time fighting something that should be simple
Clean Dzus installs come down to consistent layout, solid alignment, and controlled tacking.
What Are Dzus Tabs (And Why Does Precision Matter)?
Dzus fasteners are designed for quick, repeatable panel removal, which makes them perfect for race cars and chassis builds.
But they only work as intended when:
- Tabs are square to the tube
- Spacing is consistent
- Alignment is repeatable across the chassis
A small error during install shows up fast once panels are on, and it’s a lot easier to fix before final welding.
Tools & Materials You’ll Want on Hand
Before you strike an arc, make sure you’ve got the basics ready:
- Dzus tabs
- Clean tube chassis
- TIG or MIG welder
- Grinder or flap disc
- Measuring tools (tape, calipers, layout tools)
- Marker or scribe
A way to hold the tab in position:
- Jig (preferred)
- Clamps or magnets (with limitations)
Having everything ready keeps you from rushing later.
Step 1: Prep the Tube and Tabs Properly
Good welds start with good prep — no shortcuts here.
Before fitting tabs:
- Clean the tube surface (oil, paint, mill scale)
- Scuff the contact area lightly
- Prep the tab edges if needed
- Confirm tube diameter and tab orientation
Skipping prep usually leads to poor tacks and alignment issues that snowball later.
Step 2: Layout and Spacing (Measure First, Weld Second)
This is where clean builds separate themselves from rushed ones.
Best practices:
- Measure from a consistent reference point
- Keep spacing uniform across all tabs
- Mirror measurements side-to-side when possible
- Dry-fit panels if you can
Once tabs are welded, spacing mistakes are a pain to correct, so catch them now.
Step 3: Aligning Dzus Tabs on Round Tubing
Round tubing is what makes Dzus tabs tricky.
Tabs want to:
- Rock
- Tilt
- Shift while tacking
Here’s how common holding methods stack up:
Holding by Hand
- Inconsistent
- Unsafe
- Nearly impossible to repeat
Clamps or Generic Magnets
- Can slip or shift
- Often block access
- Not designed for tab alignment
Using a Purpose-Built Jig
- Holds tabs square on round tubing
- Repeatable positioning
- Frees both hands for welding
This is where a tool like the Chassis Speed Jig earns its keep — it removes variables so alignment stays consistent from tab to tab.
Save Money & Order Dzus Tab & Trick Tab Bundles Online
Step 4: Tack Welding the Tabs
Tack welding is where most problems either get prevented… or locked in.
A solid approach:
- Start with one tack to lock position
- Step back and check alignment
- Add secondary tacks to stabilize
- Avoid over-tacking early (heat adds up fast)
The goal is to hold everything in place without dumping unnecessary heat into the tab.
Step 5: Check Alignment Before Final Welding
This step saves more time than it costs.
After the first tack:
- Look at the tab from multiple angles
- Measure if needed
- Test-fit the panel if possible
- Make adjustments now — not later
Fixing alignment after final welding usually means grinding. Nobody enjoys that.
Step 6: Final Welding Tips for Dzus Tabs
Once you’re happy with alignment:
· Remove any holding tools
- Weld in a way that controls heat
- Avoid overheating small tabs
- Let things cool naturally if needed
Controlled welding keeps tabs from warping and preserves alignment.

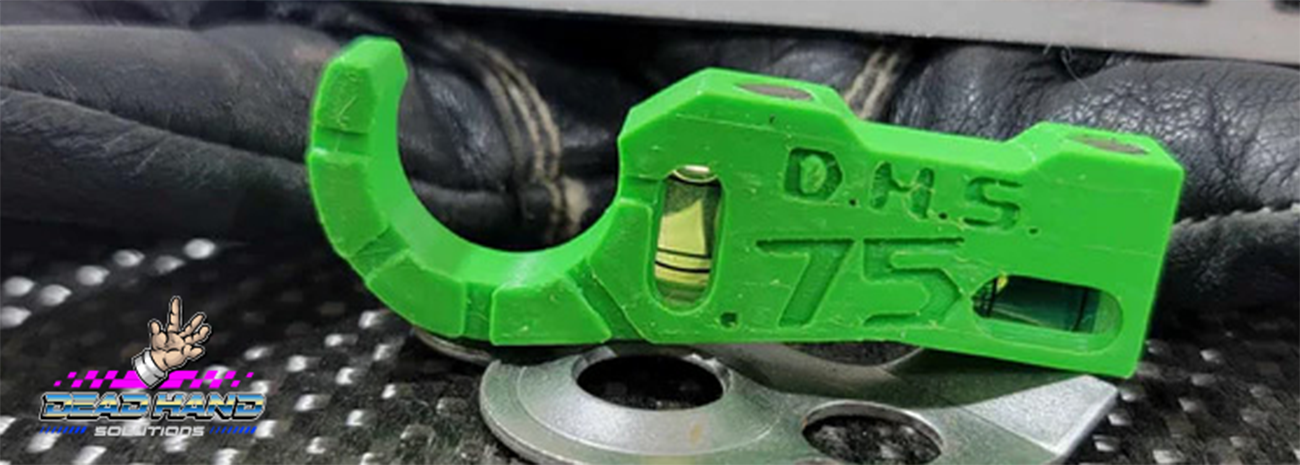

How Chassis Speed Jigs Help Improve Dzus Tab Installation
The Chassis Speed Jig is designed specifically to help with:
- Holding tabs square on round tubing
- Achieving repeatable alignment
- Speeding up setup
- Reducing rework and frustration
Different tube sizes require different jigs, which is why many fabricators keep multiple sizes on hand, especially when building full chassis.
Pro Tips That Make a Difference
A few habits that go a long way:
- Mark reference lines before fitting tabs
- Tack lightly until alignment is confirmed
- Work in a repeatable sequence
- Don’t rush the setup — it saves time later
Small adjustments early prevent big problems later.
Clean Dzus Tabs Start With the Right Setup
Welding Dzus tabs isn’t complicated, but it is detail-oriented. When you take the time to prep properly, align consistently, tack intentionally, and use the right tools, the final result shows it. Clean setup leads to cleaner welds, better panel fitment, and fewer headaches in the shop.
